MAXIMA stabilized gimbal

Introduction

ARRI took over the exclusive worldwide distribution of the MAXIMA product range.

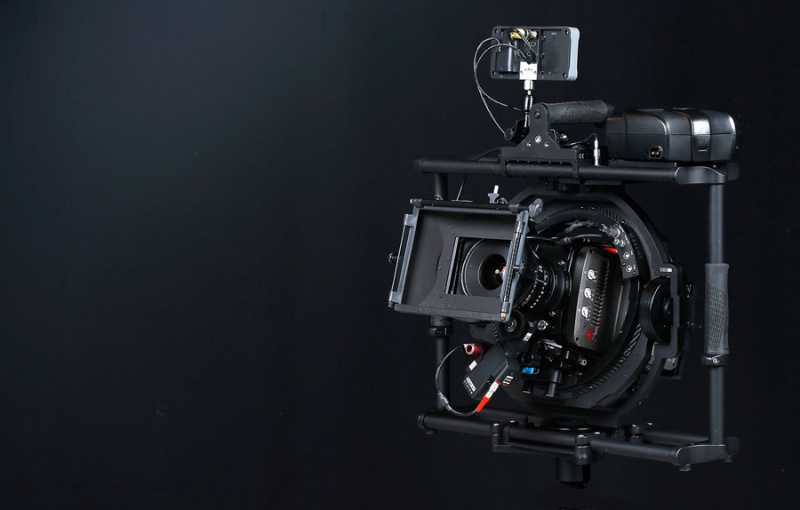

MAXIMA is a 3 axis electronically camera stabilizer, a so called Gimbal, designed and manufactured by the German company FoMa Systems. The MAXIMA is a part of the new ARRI camera stabilizer system product range.

Key features:

·         Center of Gravity optimized compact design

·         No length limitations of the camera setup

·         Up to 30 Kg / 66lb. camera payload

·         Extremely durable, high-tech ball bearing roll cage

·         32-bit ARM-based multiprocessors, quarantines extreme direct and intuitive operation

·         1.5 inch OLED display with status information and profile selection

·         5 setting can be stored internally

·         Optional wireless remote control

·         Various mounting and support brackets enables unlimited usage

·         V-Mount and Gold Mount batteries mounts

Product Name, Order Number, List Price and Description

Including:


Maxima MX30 / V- Mount         K2.0010423
Handheld 3 axis camera stabiliser system with up to 30 kg / 66 lb. payload With Anton Bauer Gold Mount battery mount

Wireless Remote for Maxima       K2.0010337
Bidirectional 2,4 GHz Diversity wireless control for Tilt - Pan - Roll.

Cam Power / Cine / 12V HiCap / ALEXA        K2.0010538
12V HiCap camera power cable / Lemo 1B 4pin -> 2pin Fischer / for ARRI ALEXA

Cam Power / Cine / 12V HiCap / MIN              K2.0010540
12V HiCap camera power cable / Lemo 1B 4pin -> Lemo 2B 8pin / for ARRI AMIRA & Alexa MINI

Spider for Maxima           K2.0010425
Mounting Bracket to use the MAXIMA with Spring Arms using the standard 5/8“ arm post.
With the optional Euro and Mitchell mounts, the Spider can be used on Dollies and Cranes

Including:

Transvideo StarliteHD5-ARRI OLED Monitor     K2.0006960
5'' OLED Monitor with Touch Screen and ARRI bus Interface / 3G / HD-SDI input + reclocked output / 5-44v DC power input through Lemo 0B 5pin

MINI / AMIRA Control Cable 6 Pin                    K2.0010295
ARRI Amira & Alexa Mini Control Cable

Universal Mounting Arm UMA-120                   K2.65020.0
Articulated accessory holder arm for attaching accessories with 3/8-16 UNC mounting points to cameras with 3/8-16 mounting points. 120 mm / 4.7 inch long, with two swivel ball joints and one elbow joint.

Transvideo StarliteHD5 OLED Monitor            K2.0010528
5'' OLED touch screen with wide color gamut (EBU) / 3G / HD-SDI input + reclocked output / 5-44v DC power input through Lemo 0B 2pin

Video Power Cable / Transvideo / 12V             K2.0010550
4pin Lemo 0B → 2pin Lemo 0B / 12 V

Universal Mounting Arm UMA-120                    K2.65020.0
Articulated accessory holder arm for attaching accessories with 3/8-16 UNC mounting points to cameras with 3/8-16 mounting points. 120 mm / 4.7 inch long, with two swivel ball joints and one elbow joint.
