Stabilized Remote Head SRH-3

Stabilized Remote Head SRH-3

Stabilized Remote Head SRH-3

Stabilized Remote Head SRH-3

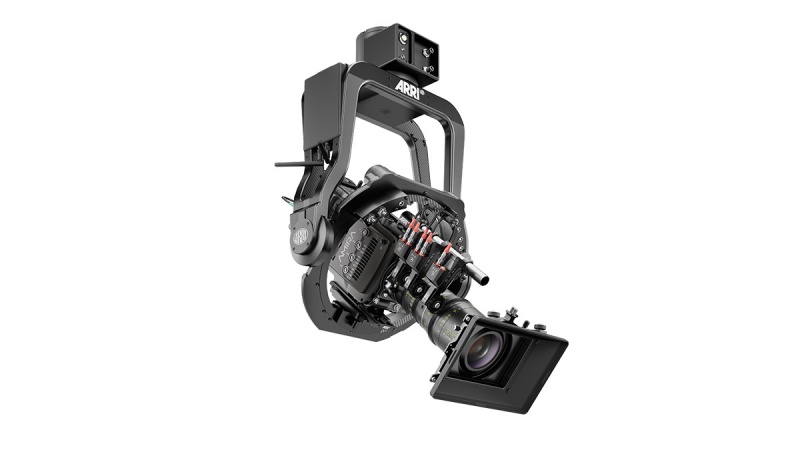

ARRI CSS is introducing a new fully stabilized 3 axes remote head, the Stabilized Remote Head SRH-3.

Key features:

High payload
The SRH-3 can take up to 30 kg (66 lbs.)

Wider inner ring
The SRH-3 got a wider inner ring, which will make camera setup
even easier and faster. Also using the ALEXA 65 will be easier.

(New diameter: 23cm/9,1“)

New adaptive motor power management
The SRH-3 is equipped with a new motor controller, which allows to offer temporary up to 50 Kg (110 lb.) of motor power when it comes to extreme centrifugal force or when very long camera setups have to be stabilized.

Low weight
The SRH-3 remote head is a very lightweight stabilized remote head. With only 9 kg (19.8 lbs.),  the SRH-3 is much lighter than comparable products and the SRH-3 can take 3 times more payload  than its own weight!

Extreme Compact
The form factor and the foot print of the SRH-3 is extreme compact.
Dimensions: height: 61cm (24“) - width: 42cm (16,5“) - depth: 13cm (5.12“)
Taking the depth of the SRH-1 in consideration, the head is three times less in depth than the Movie XL Pro  and two times less than the Scorpio remote head.

New remote control
The SRH-3 Set includes a completely new designed modular remote control board.
The center section of the panel dominated by the new touch panel, which allows fast and easy access and programming of the SRH-3 head. An external PC is not needed anymore.
Freely programmable knobs and button allows fast and direct (analog) access to the personal settings.
The modular and symmetric design of the remote control board allows left and right handed work.
The joystick can be used at the right or left sides of the console, as even two joysticks can be used if needed.

The LBUS integration for the SRH-3 had been developed.
This is the first CSS product and the first stabilized remote head on the market with integrated LBUS.
To ensure a future proof and upgradeable workflow, the SRH-3 is using the ARRI radio module and is fully compatible to all electronic PCA components.

Stabilized Remote Head SRH-3 / Pro Set

KK.0016448……….€  51.150.-

Remote Head SRH-3 / Set  K2.0016288
Remote Control / Set  K2.0016286
Case Remote Head / Set  K2.0016285
Including  training
